Description
- Brand Name: Faismars
- Hard Drive Capacity: 128GB
- Memory Capacity: 4GB
- Model Number: Desktop Computer AIO190C
- Port: VGA RJ-45 COM USB HDMI
- Weight: 8KG
- Graphics Card Chipset: HD Graphics
- Type: All-In-One
- Memory Capacity: 4GB
- Origin: Mainland China
- HDD Rotation Speed: SSD
- Mouse & Keyboard: No
- Processor Model Number: Intel Core i3-4120U
- Drive Type: No CD ROM
- RAM Type: DDR3

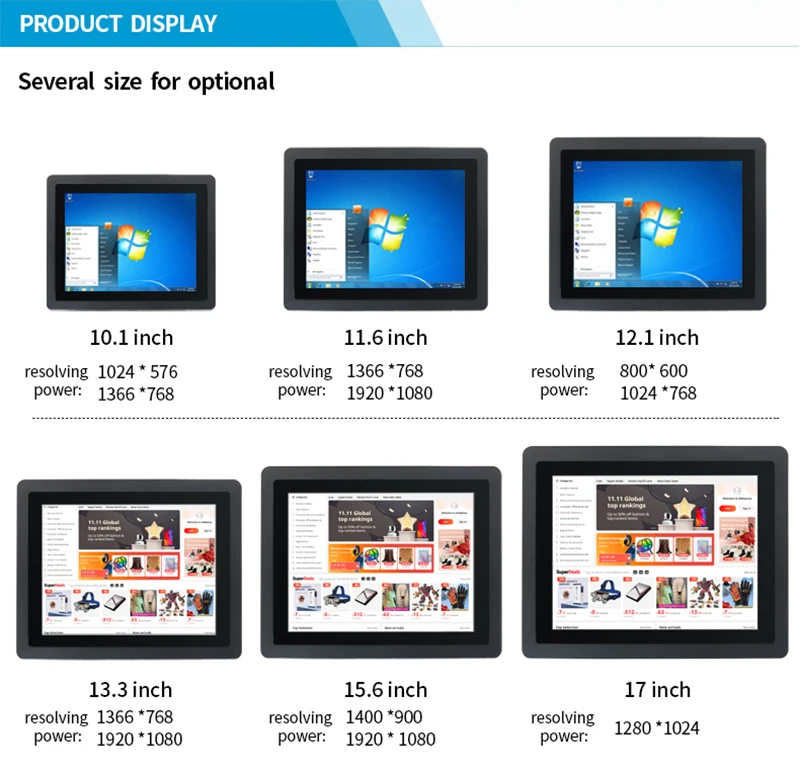

- Display Size: 15"
- Video Memory Type: GDDR3
- Bundle: Bundle 1
- Dispaly Ratio: 5:4
- Power: 15w
- Graphics Card Type: Integrated Card
- Display Type: Touch Screen
- Certification: CE,RoHS
- Processor Main Frequency: 2.00 GHz
- Operating System: Windows 10
- Processor Core: Dual Core
- Product Name: Embedded Desktop All In One PC Computer
- Working temperature: -10~70 ℃
- Advantage: Cheap price/new parts/OEM

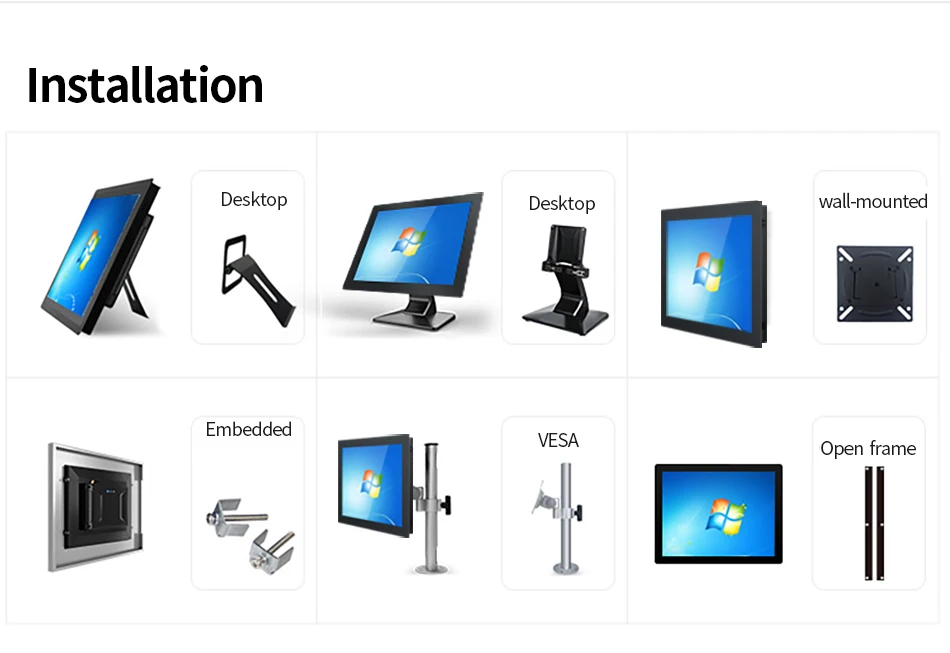

- Installation: desktop/wall hanging/embedded/ Rack Mount
- CPU: intel i3 i5 i7 J1900 J4125 for option
- Feature: pure flat design ip65 waterproof frame, oilproof, dustproof, built in wifi, 10 points touch screen
- Resolution: 1280*1024
- Availability of product: Stocked
- Packing: individual package
- Material: Aluminum frame, iron metal back cover
- Touch type: Capacitive touch
- Warranty: 1 year
- OEM/ODM: Supported
Information of industrial touch desktop computer
Intel Celeron-J1800 processor (Dual cores, 1m high-speed L2 cache, 2.41 GHz-2.58 GHz, TDP power consumption:10w)
Intel Celeron-J1900 processor (Quad cores, 2m high-speed L2 cache, 2.00 GHz-2.41 GHz, TDP power consumption:10w)
Intel Celeron-J4125 processor (Quad cores, 4m high-speed cache, 2.00 GHz-2.70 GHz, TDP power consumption:10w)
Intel Core i3-3217U processor (Daul cores, 3m high-speed cache, 1.80 GHz, TDP power consumption:17w)
Intel Core i5-3317U processor (Daul cores, 3m high-speed cache, 1.70 GHz-2.60 GHz, TDP power consumption:17w)
Intel Core i5-3210M processor (Daul cores, 3m high-speed cache, 2.00 GHz, TDP power consumption:18w)
Intel Core i3-4120U processor (Dual cores, 3m high-speed cache, 2.00 GHz, TDP power consumption:15w)
Intel Core i5-4200U processor (Quad cores, 3m high-speed cache, 1.60-2.60GHz, TDP power consumption:15w)
Intel Core i5-4300U (Dual cores, 3m high-speed cache, 1.90GHz, TDP power consumption:15w)
Intel Core i7-4600M (Dual cores, 4m high-speed L2 cache, 2.90 GHz, TDP power consumption:37w)
Intel Core i5-6360U processor (Dual cores, 4m high-speed cache, 2.00 GHz-3.10 GHz, TDP power consumption:15w)
Intel Core i5-8265U processor(Quad cores, 6m high-speed L2 cache, 1.60 GHz-3.90GHz, TDP power consumption:15w)
Intel Core i7-8565U processor(Quad cores, 8m high-speed L2 cache, 1.80 GHz-4.60GHz, TDP power consumption:15w)
Intel Core i5-10210U processor (Quad cores, 8m high-speed cache, 1.60 GHz-4.20 GHz, TDP power consumption:15w)
Intel Core i5-1135G7U (Quad cores, 8m high-speed L8 cache, 2.40 GHz-4.20GHz, TDP power consumption:28w)
lcd Screen parameters:
Viewing angle: horizontal (left/right): 150° (75°/ 75°) vertical (up and down): 150° (75°/ 75°), black frame
Touch screen type: Capacitive touch screen (10-point touch)
Touch screen interface: USB (COM touch Optional)
Light transmittance: 80%
Life expectancy: 35 million times (theoretical value)
Brightness: 300cd/m2
Contrast ratio 1000:1
Color: 16.2 million color
Frame Rate：60Hz
power requirement of system：+ 12V DC power input
Power adapter：input：100〜250VAC，50 / 60Hz
output：60W Adapter（12V 5A）
Working temperature：-20°C〜60°C
Relative humidity：0％〜90％relative humidity, no condensatio
VISA Hole distance：75*75mm

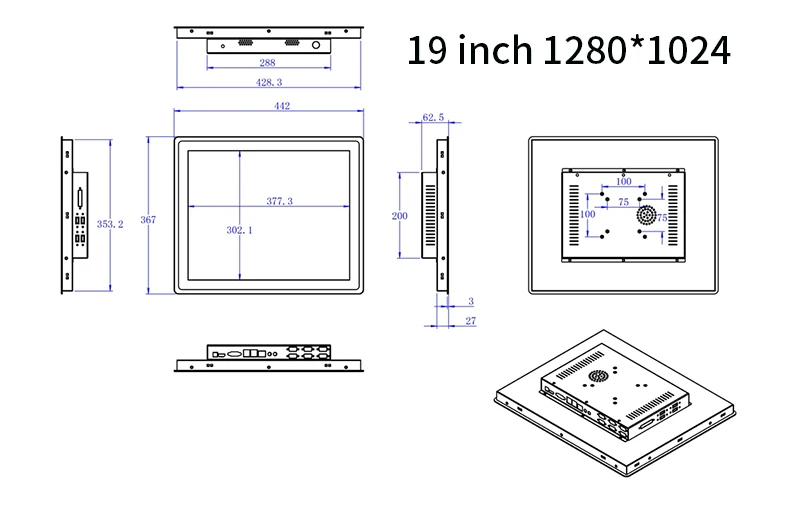

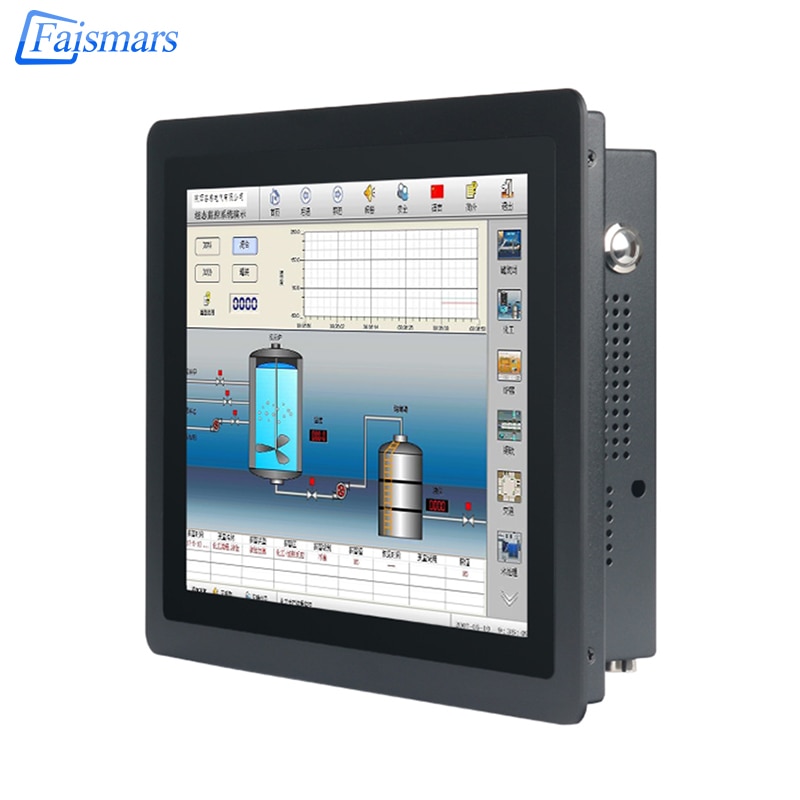

Dimension of industrial all in one pc computer

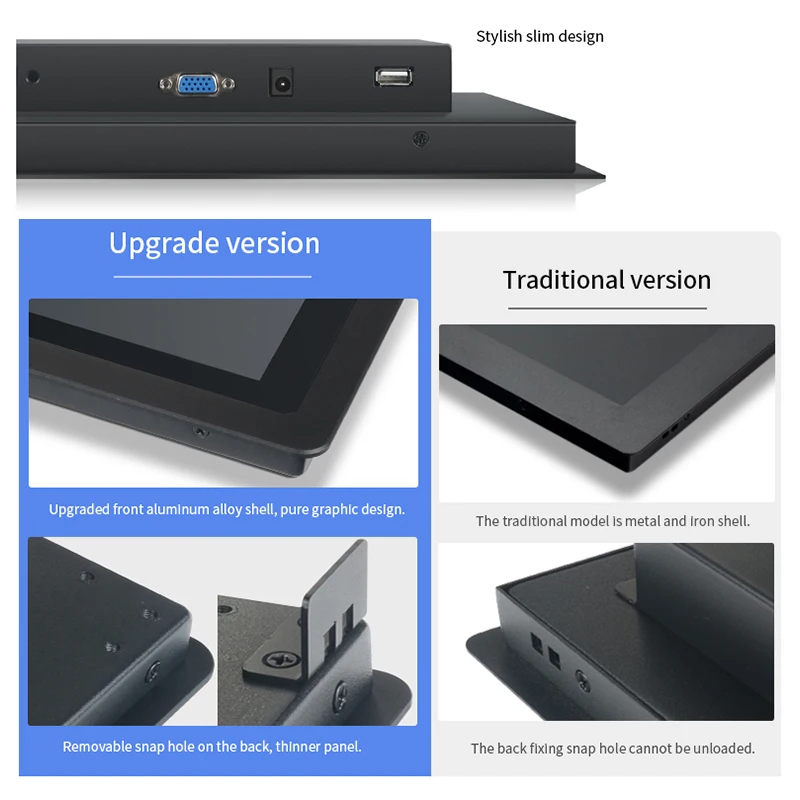

Aluminum alloy die casting die-new upgrade design
The front panel is waterproof and dustproof, continuous innovation.
3mm bezel Aluminum alloy frame and Iron Frame back cover.
Provide better quality industrial control all-in-one machine for automation.

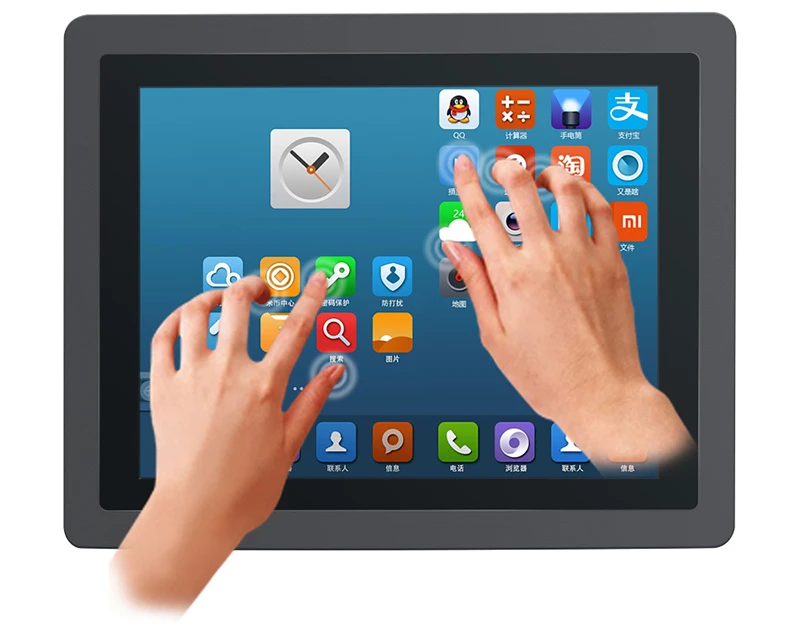

Sencitive 10 points capacitive touch
Support standard 10-points touch with 5ms reponse time, one time precise posistioning.
Pure screen capacitive touch, sensitive response, no lag, no blind spot, and high stability.
With high brightlight touch Screen, the picture clear, broad version, full of rich color.

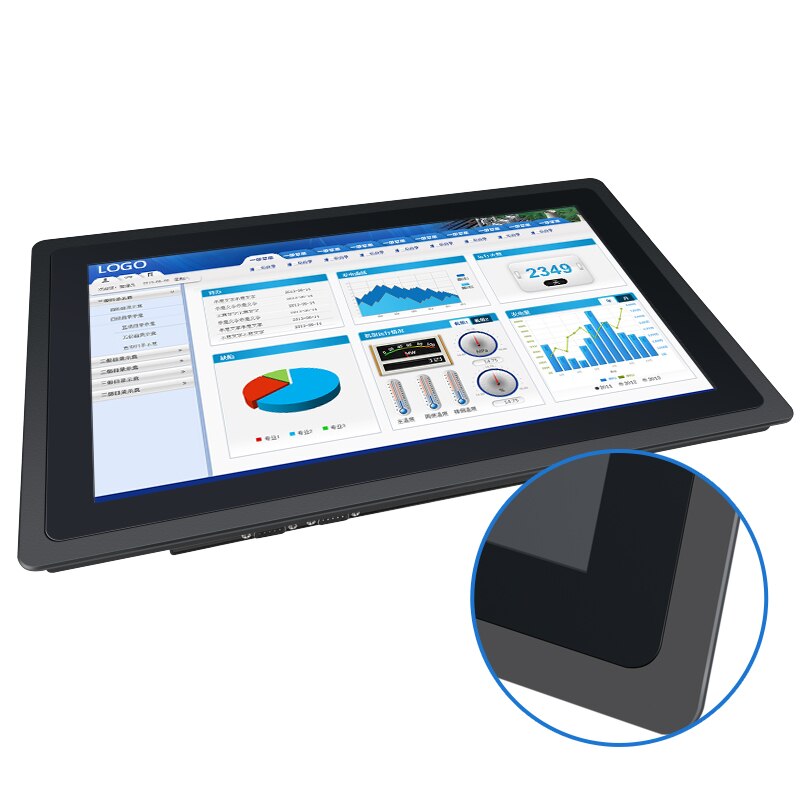

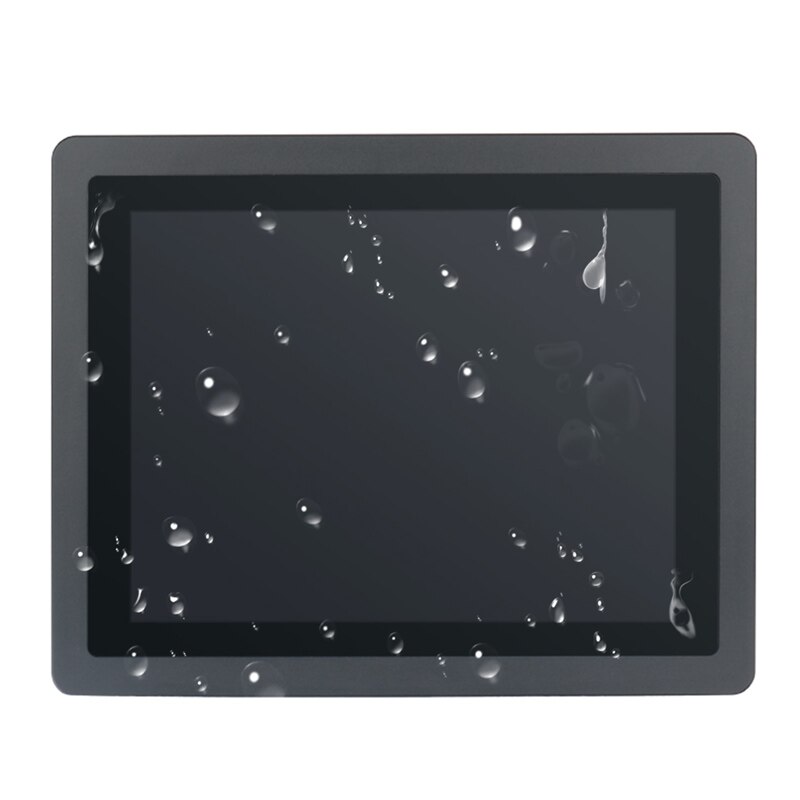

Pure Flat IP65 panel with dust, oil and water resistant functionality
The pure flat panel IP65 protection grade design no crack.
Ture flat design effectively dustproof, waterproof and oilproof splashed into the machine.
Suitable for harsh industrial envirement.
High quality & strong performance
Stable performance, faster response industrial pc adopts the current mainstream low-power processor, stable and smooth operation.
High and low temperature resistant design high quality products
Low power consumption, more slient
Slient operation, no noise, energy saving, low power consumption, more lasting operation and standby

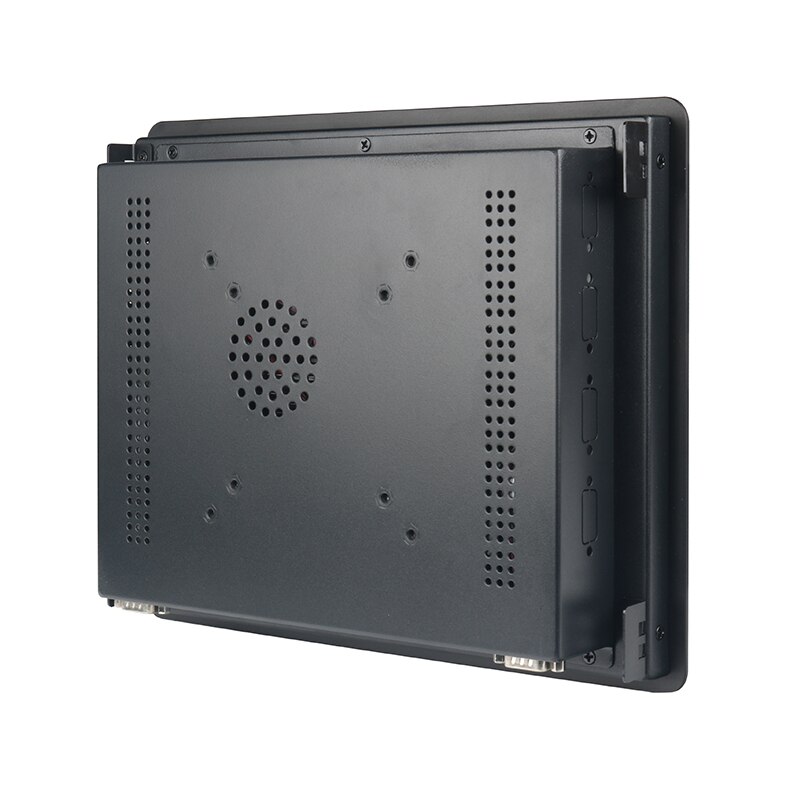

Efficient heat dissipation back cover
Multi direction scientific cooling holes, cold-rolled sheet metal body and low-power hardware enable the machine to maintain a healthy temperature.

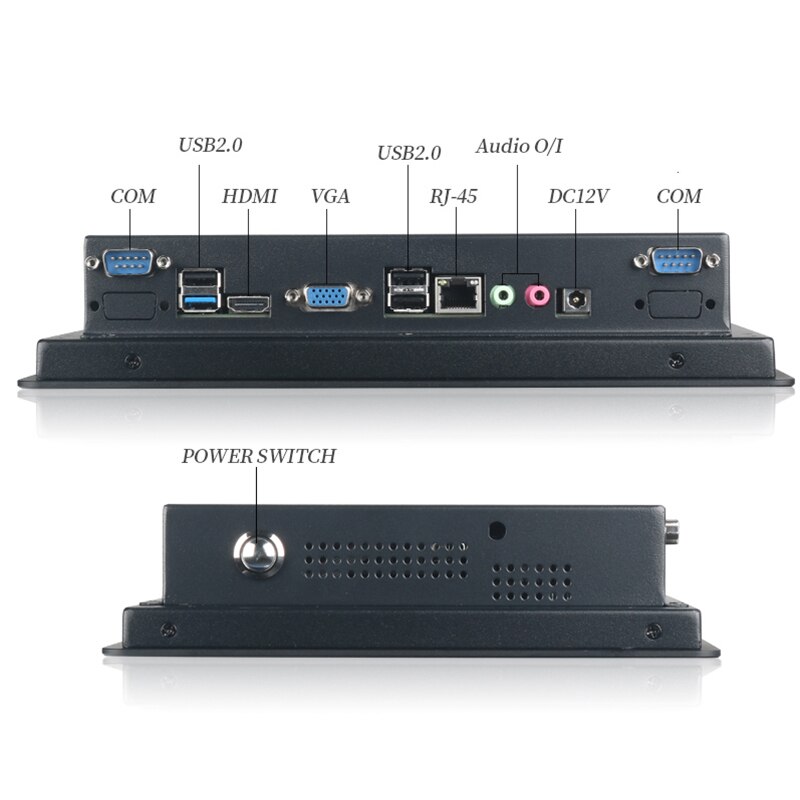

Functional serial port
Interface:1 x VGA + 1 x HDMI + 2 x COM + 1 x RJ45 + 4 x USB + 1 x audio + 1 x DC 12V In (1 x 3 Pin Power supply aviation port, 2 x RJ45, 2/6 x COM are optional)
If you need customization, please contact customer service.
